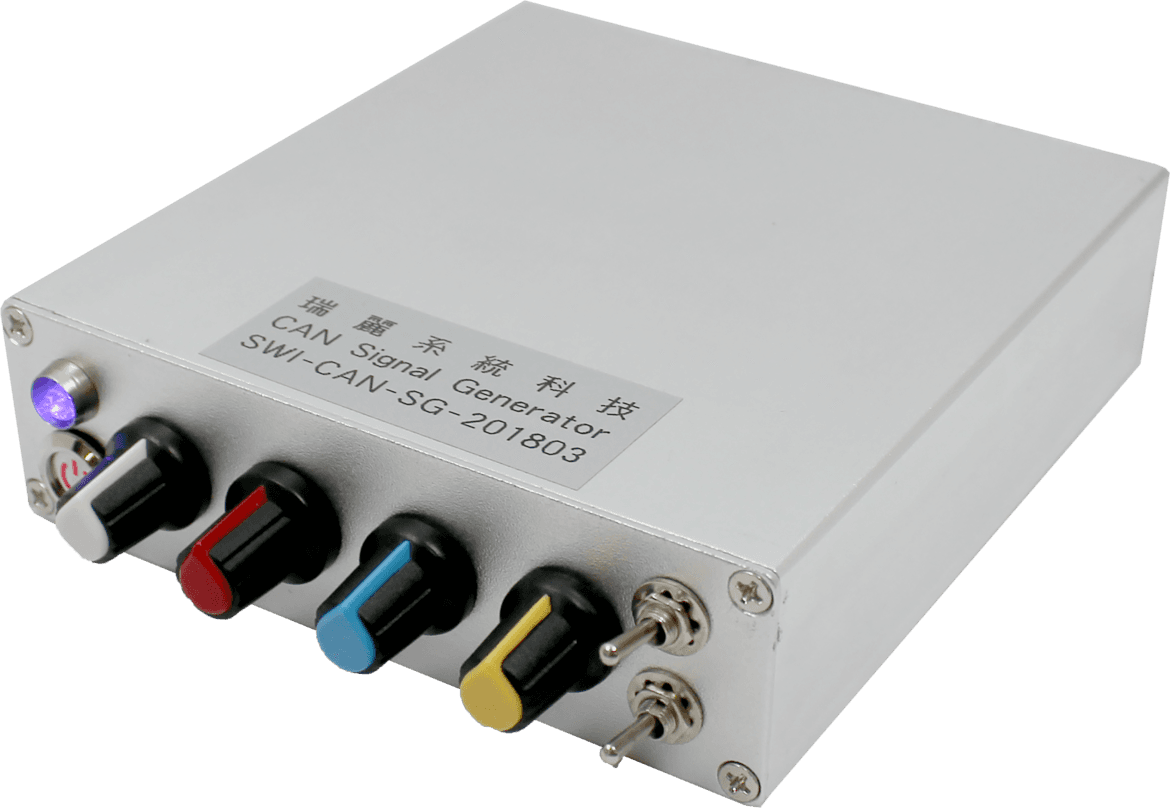

CAN signal generator - Product Image
Description
CAN Bus signal generator is originally designed for the automotive industry. It has two pin interface connectors, four adjustable knobs and two toggle switches. The TJA 1050 is the protocol interface for physical bus-to-CAN. The system gives both transmitting and receiving capability for the CAN controller. This standard specifies many different data speeds with 1 MB/s. The latest version of the serial CAN Bus protocol, has increased with the transmission speeds to 10 MB/s. To preserve signal efficiency, the bus requires 120 Ω termination resistance at each end of the unshielded twisted pair cable. CAN Bus signal generator is compatible with standard ISO 11898 and this device is suitable for connecting PCs, smart phones, and tablets.
Key Features
- 2 Pin CAN Bus Interface Connector
- 4 Adjustable Knobs
- 2 Toggle Switches
- 120Ω Terminal Resistor Switch
- CAN Update Speed > 10ms
- CAN Transceiver：TJA 1050
- CAN Protocol：ISO 11898
