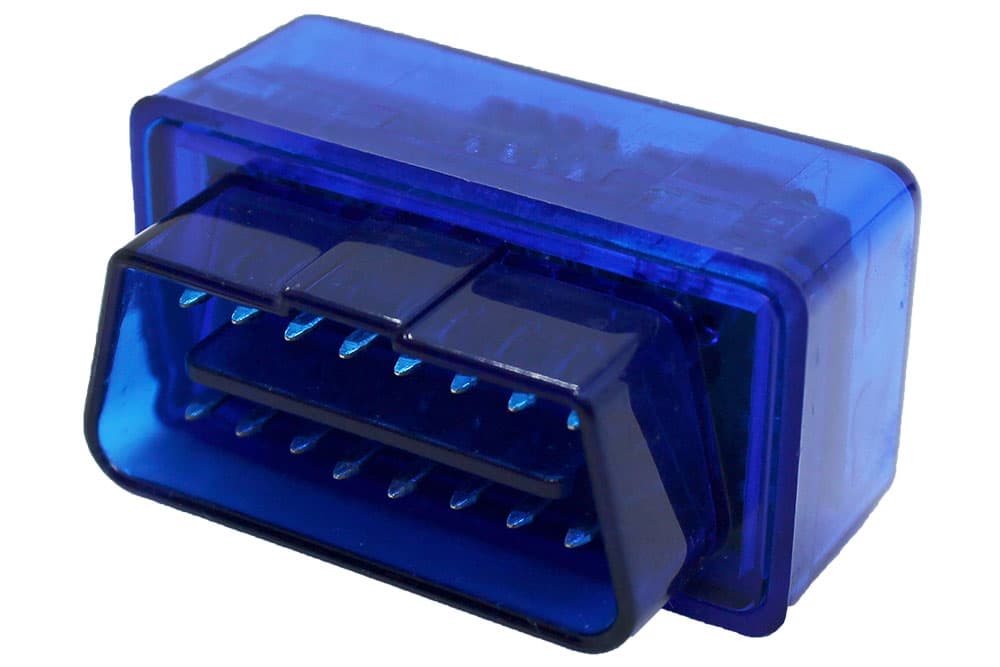

HeavyDuty-J1939 Bridge - Product Image
Description
SWISYS Heavy Duty – J1939 Bridge, is a high-level communications protocol, which operates on a Controller Area Network (CAN) bus, which is an In-Vehicle-Infotainment (IVI) cost competitive product. The hardware design is based on our SAE J1939 / OBD-II Device with Bluetooth to get vehicle information such as speed, engine speed, coolant temperature, IAT sensor, APP, MAP, vehicle identification code (VIN), etc. J1939 Bridge contains three parts they are off, CAN Transceiver (TJA1050), main controller (RL78 MCU), and Bluetooth transmission module (HC-05). J1939 doubles the data transmission rate from 250 Kbit/s to 500 Kbit/s.
Key Features
- Provides Basic J1939 Data: SPD, TMP, RPM, APP, Tire, Distance, Weight, Fuel Economics (Instantaneous & Average)
- Multiple Command Sets: Basic, Advanced (ESG/FMS), and Customized for system integration
- Easy Integration with IoT Devices: BT, USB, 3G/4G, LoRa, NB-IoT; Optional Contactless CAN Probe (CCP)
- Automotive-Grade Compliance: BCI (ISO 11452-4), EFT (IEC 61000-4-4), ESD (IEC61000-4-2)
- Wide Vehicle Compatibility: Supports 200+ heavy vehicle brands for ESG-based fleet management, ADAS, V2V communication, vehicle diagnosis, and IVI applications
